    High Strength Solid Lubricant Bearings C86300 Manganese Bronze Groove Type

    Ask Lasest Price
    Brand Name : WHB
    Model Number : JDB
    Certification : ISO3547/ISO9001
    Price : Negotiation
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 600000pcs per month
    Delivery Time : 10-20 work days
    • Product Details
    • Company Profile

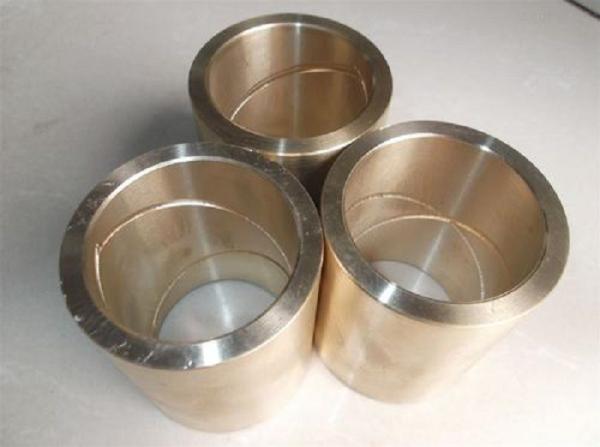

    High Strength Solid Lubricant Bearings C86300 Manganese Bronze Groove Type

    High Strength C86300 Manganese Bronze Grooves Bushings Standard


    1. Product Description

    High Strength C86300 Manganese Bronze Grooves Bushings Standard offer tecnically and economically favorable bearings solutions,also can offer different types of bronze alloys according to the required lif time,service etc.It can operate under very high loads and speeds.


    2. Specification


    Basic materialZCuZn25Al6Fe3Mn3FrictionOil Lubrication0.05μ
    Density8.0g/cm³

    Dry Friction

    0.15μ
    Heat-conducting Coefficient46-63(w/m.k)Tensility≥8%
    Tensile Strength≥600 N/mm2Working Temperature Limits-40℃~+400℃
    Anti-compact Tenacity≥800 KJ/m3Max Load Pressure120 N/mm2
    Hardness≥250HBMax Linear Velocity0.25m/s
    Flexibility Coefficient85-115 KN/mm2Max PV Value3.0N/mm2.m/s


    3. Application

    High Strength C86300 Manganese Bronze Grooves Bushings are widely usded in environmental protection machine, hydraulic machinery,chemical machinery etc.


    4. Advantages

    This type of solid lubricant bearings with high load capability, low weight and good corrosion esistance, to play the bearings of the due performance, the role of mechanical performance and maintenance-free.The oil free design,the cost of oil insallations, processing fees,assembly fees,the extra cos and time savings can significanly reduce manufacturing costs.
