Oilless Automotive Bearings Self Lubricating Type For Door Hinge High Bonding Performance

    Buy cheap Oilless Automotive Bearings Self Lubricating Type For Door Hinge High Bonding Performance from wholesalers

    Buy cheap Oilless Automotive Bearings Self Lubricating Type For Door Hinge High Bonding Performance from wholesalers
    • Buy cheap Oilless Automotive Bearings Self Lubricating Type For Door Hinge High Bonding Performance from wholesalers

    Oilless Automotive Bearings Self Lubricating Type For Door Hinge High Bonding Performance

    Ask Lasest Price
    Brand Name : WHB
    Model Number : DU
    Certification : TS16949/ISO9001
    Price : Negotiation
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 5000000pcs per month
    Delivery Time : 10-15 work days
    • Product Details
    • Company Profile

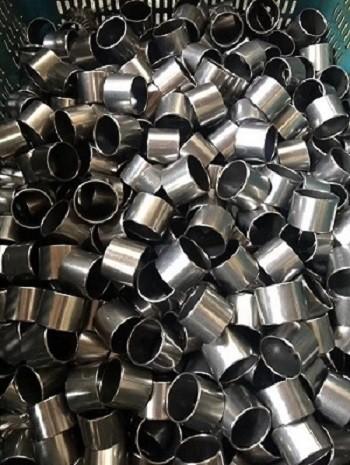

    Oilless Automotive Bearings Self Lubricating Type For Door Hinge High Bonding Performance

    Automotive Door Hinge Bushings Refer to WHB101 Specification Oilless Bushing


    1. Product Description

    Automotive Door Hinge Bushings Refer to WHB101 Specification Oilless Bushing consists of steel back,sintered porous bronze alloy and PTFE & polymer coating.It is lead free and has good pertormance in anti-wear,anti-fatigue,anti-punching. high bonding performance.Low-carbon steel, which improves load capacity and heat transfer. Copper / tin coating layer, anti-corrosion.


    2. Specification

    Load capacityStatic load250N/mm2PVvalue limitOil lubrication50N/mm2.m/s
    Dymamic load140N/mm2Dry friction3.6N/mm2.m/s
    Oscillating60N/mm2Friction coef μ0.04~0.20
    Speed limitOil lubrication5m/sWorking temperature-195℃~+280℃
    Dry friction2.5m/sThemalconductivity40W/mk
    Coefficient of linear expansion11×10 -6/K

    3. Application

    Automotive Door Hinge Bushings Refer to WHB101 Specification Oilless Bushing are widely used in automotive door hinge,Trunk cover hinge,knuckle mechanic etc.


    4. Advantages

    This WHB100 series products are of low friction coefficient, anti-wear, anti-corrosion and can be used without oil, or only a trace of oil if needed. Moreover, it is of low cost, low vibration and low noise, compacted and light, SF-1 is widely applied in various sliding articles of different kind of machines and steering part.
