Customizable Flanged Sleeve Bearing , Anti Corrosion Metal Polymer Bearings

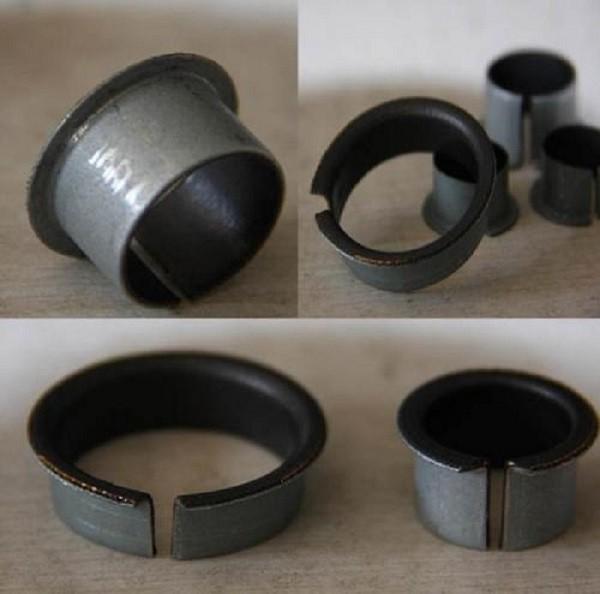

Thermoplastic Flanged Sliding Bearing Metal - Polymer With Anti-corrosion

1. Product Description

Thermoplastic Flanged Sliding Bearing Metal - Polymer With Anti-corrosion consists of steel + bronze powder+ PTFE/Fibre, the material suitable for lubricated applications,over a wide range of loads, speeds and temperatures in dry running conditions,it supports rotary, linear and oscillating motion.

2. Specification

Load capacity	Static load	250 N/mm2	PVvalue limit	Oil lubrication	60 N/mm2.m/s
	Dymamic load	140 N/mm2	PVvalue limit	Dry friction	3.6 N/mm2.m/s
	Oscillating	70 N/mm2	Friction coef μ		0.05~0.30
Speed limit	Oil lubrication	5m/s	Working temperature		-195℃~+280℃
Speed limit	Dry friction	2.5m/s	Thermal conductivity		40 W/mk
Coefficient of linearexpansion		11 10 -6/K

3. Application

Thermoplastic Flanged Sliding Bearing Metal - Polymer With Anti-corrosion are widely used in hydraulic machinery,textile machine,chemical machinery etc.

4. Advantages

This material meets the demanding criteria for long life and maintenance free performance with or without lubrication. The products are widely used in all industrial fields where lead is unacceptable.High static and dynamic load capacity suitable for rotating,oscillating and sliding movement,the bearing lining can be machinable after fixed.
