PEEK Sleeve Shock Absorber Bearing For Hydraulic Machinery Long Operating Life

    Buy cheap PEEK Sleeve Shock Absorber Bearing For Hydraulic Machinery Long Operating Life from wholesalers

    Buy cheap PEEK Sleeve Shock Absorber Bearing For Hydraulic Machinery Long Operating Life from wholesalers
    • Buy cheap PEEK Sleeve Shock Absorber Bearing For Hydraulic Machinery Long Operating Life from wholesalers
    • Buy cheap PEEK Sleeve Shock Absorber Bearing For Hydraulic Machinery Long Operating Life from wholesalers

    PEEK Sleeve Shock Absorber Bearing For Hydraulic Machinery Long Operating Life

    Ask Lasest Price
    Brand Name : WHB
    Model Number : PAP
    Certification : ISO3547/9001
    Price : Negotiation
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 2000000pcs per month
    Delivery Time : 10-20 work days
    • Product Details
    • Company Profile

    PEEK Sleeve Shock Absorber Bearing For Hydraulic Machinery Long Operating Life

    PEEK Sleeve Shock Absorber Bearing For Hydraulic Machinery Long Operating Life


    1. Product Description

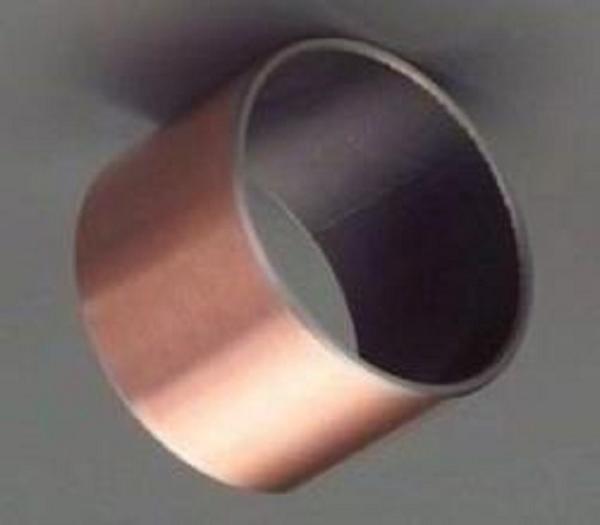

    PEEK Sleeve Bushings For Gear Unit , Hydro Engine & High Pressure Injection Pump are consists of steel backing, sintered porousbronze layer and sliding layer of modified PEEK. Oil sockets were formed on the surface of sliding layer. This product has low friction coefficient at high temperature and good anti-corrosion.Therefore, it is widely used in engineering.


    2. Specification

    Load capacityStatic load250
    N/mm2
    PVvalue limitOil lubrication40
    N/mm2.m/s
    Dymamic load140
    N/mm2
    Dry friction3.0
    N/mm2.m/s
    Oscillating60
    N/mm2
    Friction coef μ0.03~0.20
    Speed limitOil lubrication5m/sWorking temperature-150℃~+300℃
    Dry friction2.5m/sThermal conductivity50 W/mk
    Coefficient of linearexpansion11
    10 -6/K

    3. Application

    PEEK Sleeve Bushings For Gear Unit , Hydro Engine & High Pressure Injection Pump are widely used in pump ,guiding part of high quality shock absorbers,lathes and lifting parts of tanks and rockets etc.

    4. Advantages

    The PEEK sleeve bearing has the characteristics of high bearing capacity, good seismic resistance, stable and reliable operation, low noise and long life, even has good performance when it works under water lubrication or little oil lubrication.Its wear resistance is quite outstanding compared with ordinary material bearings.Its form is simple, large contact area, if the lubrication is maintained well, this wear resistant sleeve bearing will be very good, the bushing life will be very long.


    Quality PEEK Sleeve Shock Absorber Bearing For Hydraulic Machinery Long Operating Life for sale
